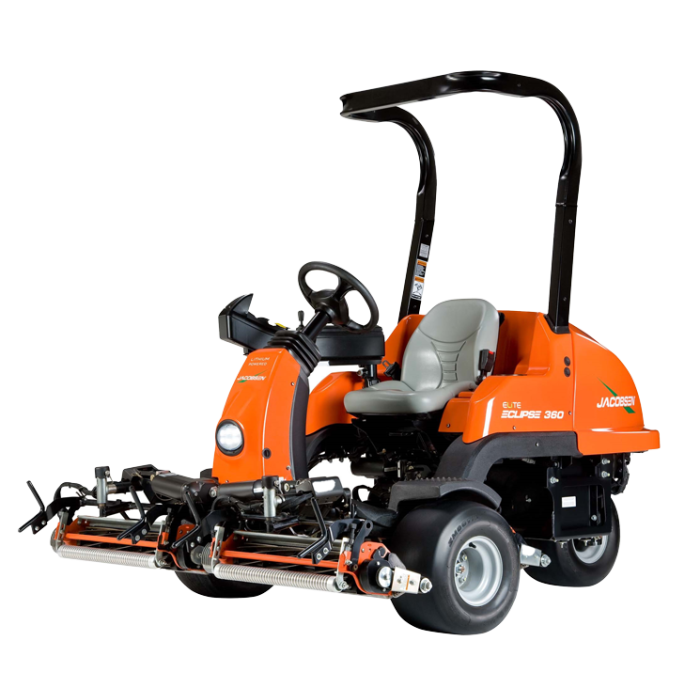

The Jacobsen Eclipse 360 ELiTE Fully Electric Riding Greens Mower cuts more than grass. Fuel cost, noise and maintenance downtime are all reduced by a mower with advanced precision technology, that gives you Jake’s trusted signature cut.
The latest ELiTE™ Lithium-Ion battery and a hydraulic-free design makes the Eclipse 360 electric reel mower the greenest, quietest and highest quality Jake cut available for your golf course or fine sports turf.
Key Features of the Jacobsen Eclipse 360 ELITE Greens Mower
- 250 Ah ELiTE lithium battery, powered by Samsung SDI technology, provides power for a consistent cut on every turn.
- Unique swing-out centre cutting unit for ease of service
- Precision cutting and consistent frequency of cut, regardless of operator
- No hydraulic oil, battery maintenance or exhaust fumes
- Electronic controlled steering means no cables or hydraulics
- InCommand™ operator interface with on-board diagnostics, machine setup, and backlap
- LED Light
- Independently controlled lift/lower helps to eliminate “triplex ring” by varying which cutting unit is used on cleanup
- Compatible with Jake’s Signature 22“ (55.9cm) 7, 9, 11 & 15 blade reels or optional 22“ (55.9cm) Verticut
- ROPS as standard
- 2WD standard or modify with the optional 3WD kit
- Automatic parking brake
- New linear actuators with exceptionally long life
Elite Lithium Powertrain
ELiTE lithium batteries, powered by Samsung SDI technology are proven with over 15 million hours of proven field experience, guaranteeing superior quality and peace of mind with our 5-year battery pack warranty.
When compared to lead acid, ELiTE lithium batteries, powered by Samsung SDI technology, require no battery maintenance and provide a consistent flow of power. As a result, reduced power spikes make the Eclipse 360 ELiTE one of Jacobsen’s most dependable machines.
Key Specifications of the Jacobsen Eclipse 360 ELITE Greens Mower
- Cut width: 1.6m (62")
- Battery pack: 250ah lithium
- Blades per reel: 7, 9, 11 or 15
- Run time: 22+ golf greens (1.1+ hectares)
- Cut height: 1.6mm-11.1mm (0.062"-0.438")
- Cutting capacity: 12,449sqm (143,000 sq ft)
- Mower Warranty: 2 years
Reels & Blades
| Number and Size | 3 x 22” (55.88cm) reels; 5” (12.7cm) diameter |
| Cutting Width | 62” (1.6m) |
| Blade Material | Hardened, high manganese carbon steel |
| Cutting Unit Lift | New long life linear actuator |
| Cutting Frequency | 036” - 0.250” (0.91 mm - 6.35 mm) with 15 blade reel, electronically adjustable |
Traction, Brakes and Speed
| Traction Drive | Front / 2WD - AC; 4.4HP (3.3kW) continuous (Optional 3WD – PM; 3.2HP (2.4kW)) |
| Reel Drive | One brushless DC motor per reel; 1.3HP (0.97kW) continuous |
| Hydraulic System | No hydraulic oil |
| Service Brakes | Dynamic regenerative braking system |
| Parking Brakes | Automatic electro-magnetic multi-plate |
| Steering | Variable ratio Drive-by-wire steering with feedback control |
| Mowing Speed | 0 - 5.0mph (0 - 8.9km/h); electronically adjustable max speed |
| Transport Speed | 0 - 9.0mph (0 - 14.5km/h); electronically adjustable max speed |
Weights and Dimensions
| Weight (Excluding fuel) | 1,598lb (725kg) with groomers, rear roller brushes, grass boxes and 15 blade reels,1,598lb (725kg) with groomers, rear roller brushes, grass boxes and 15 blade reels,charger and aluminum front rollers |
| Length | 101” (2.56m) with catchers |
| Overall Height (including ROPS) | 79.3" (2.01m) |
| Wheelbase | 52” (1.32m) |
| Transport/Working Width | 67.7" (1.72m) |
