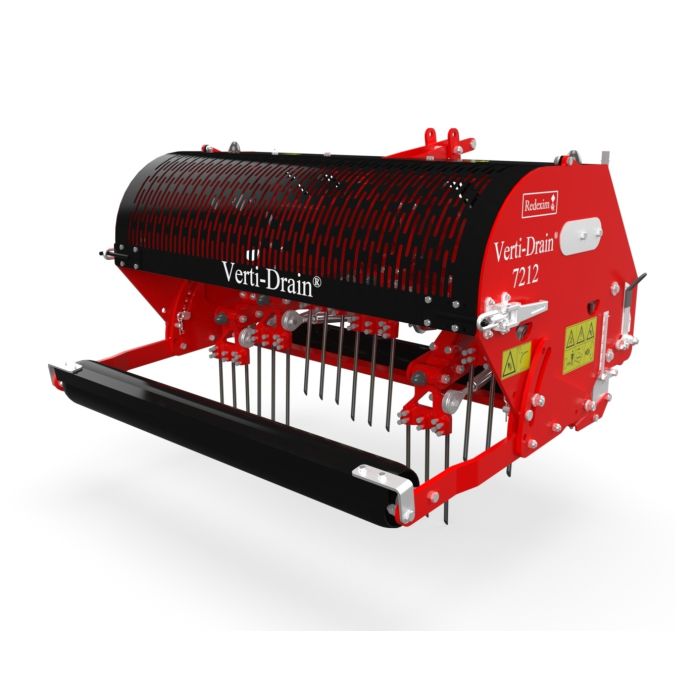

Redexim Verti-Drain 7212 Aerator

The Redexim Verti-Drain® 7212 is a compact yet highly capable aerator, perfectly suited for use with lower HP tractors. Engineered to provide deep aeration of up to 10 inches (25 cm), the 7212 is an ideal solution for maintaining the health and vitality of sensitive turf areas, particularly in hard-to-reach locations. Despite its smaller size, this model retains all the essential features of larger Verti-Drain machines, making it a versatile choice for golf courses, sports fields, and other turf management applications where space is limited.

Popular among turf professionals for its ease of use and reliability, the 7212 offers a broad range of tine options, allowing for tailored aeration depending on the specific needs of the turf. Its compact design, combined with a low tractor HP requirement, ensures that even smaller tractors can achieve professional-grade aeration results without compromising on performance.

Key Features and Benefits of the Redexim Verti-Drain 7212 Aerator

• Compact and Versatile: Perfect for aerating hard-to-reach or sensitive turf areas, offering the full functionality of larger Verti-Drain models.
• Low Tractor HP Requirement: Operates efficiently with lower horsepower tractors, making it accessible for a wide range of users.
• Broad Range of Tine Options: Offers versatility in aeration, with multiple tine choices to suit different soil conditions and turf requirements.
• User-Friendly Design: Easy to maneuver and operate, ideal for turf professionals working in confined spaces.
• Durable Construction: Built to withstand regular use while delivering consistent, high-quality results.

Technical Specifications for the Redexim Verti-Drain 7212 Aerator

• Operation: Tractor Mounted
• Working Width: 1.2 m (48 inches)
• Max. Working Depth: 250 mm (10 inches)
• Working Speed at 65 mm Hole Spacing: 1 km/h (0.6 mph)
• Weight: 470 kg (1030 lbs)
• Hole Distance with 12 mm Tines: 65 mm (2.5 inches)
• Hole Distance with 18 mm Tines: 100 mm (4 inches)
• Hole Spacing Distance Driving Direction: 25 - 165 mm (1 - 6.5 inches)
• Max. Diameter Solid Tine: 18 x 250 mm (3/4 x 10 inches)
• Max. Diameter Hollow Tine: 25 x 250 mm (1 x 10 inches)
• Min. Tractor HP Required: 18
• Min. Lifting Capacity 610 mm Behind Lifting Eyes: 570 kg (1250 lbs)
• Max. Capacity with 65 mm Spacing: 1200 m²/hr (11,000 ft²/hr)
• Three-Point Hitch: 3-point CAT 1
• Rpm Max.: 500
• Gearbox Oil: 80W90, 3 liters
• Lubricant: EP 2
• Dimensions: 1350 mm (width) x 800 mm (height) x 1100 mm (length) / 44 inches (width) x 32 inches (height) x 54 inches (length)
• Slip Clutch Setting: 450 NM (3983 lbf-in)

Standard Components with the Redexim Verti-Drain 7212 Aerator

• Toolbox with Combi Tool and Manual: x 1
• PTO Shaft: x 1
• Solid Tine 12x250: x 18

The Redexim Verti-Drain® 7212 is a reliable and efficient choice for those seeking a compact aerator capable of delivering exceptional performance on sensitive and hard-to-reach turf areas. With its robust design and versatile features, the 7212 ensures that even the most delicate turf can be maintained with ease and precision.
