Graden Swing Wing VERTI-cutter SW04
Product Code:
GR-175.150.000
You can enter your shipping address in the checkout.
Estimate Delivery
Globe Pest Solutions Blacktown
Low On stock
Blacktown
Unit 1, Building 2 / 13 Bessemer Street
Blacktown
NSW
2148

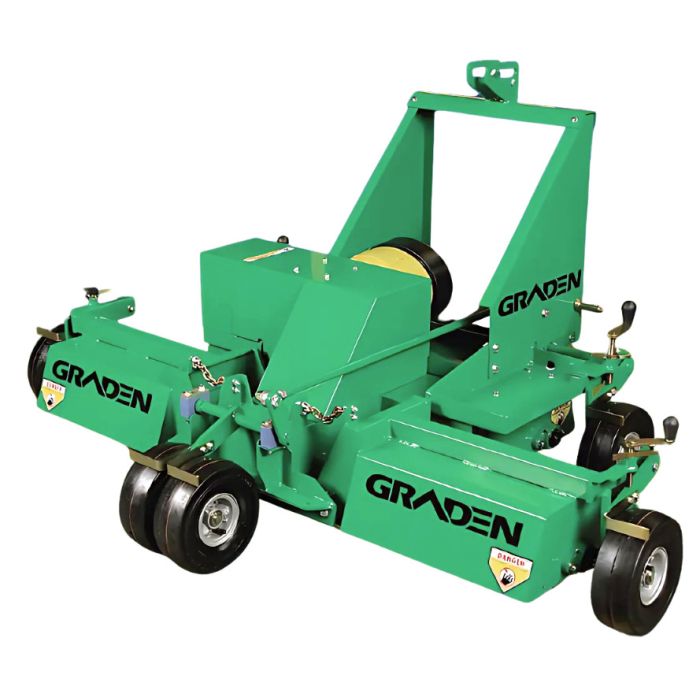

Graden Swing Wing VERTI-cutter SW04 is a tractor-mounted Graden Verti-cutter with three individual floating heads. This machine is ideal for all areas of the golf course and is made to cope with undulations, including greens, tees and fairways.
| Drive Belts | A47 Dayco Super 2 Series 8 per machine |
| Gearbox | Comer T27A Increasing Gearbox |
| Tractor | 30hp + |
| Wheels | 4.10/3.50-4 tube type slick tyres, 8 per machine, HD bearings in rims |
| Cutting Depth | Variable from 0 to 1.75” (45 mm) |
| Cutting Width | 59” (1500 mm) or 79” (2000 mm) |
| Width | 79” (2000 mm) or 98” (2480 mm) |
| Length | 57” (1450 mm) |
| Height | 37” (950 mm) |
| Weight | 727 lbs (330 kg) or 794 lbs (360 kg) |
Blades
- Standard blade width and spacing
- 29 x 5/64” (2 mm) blades at 2” (52 mm) spacing or 39 x 5/64” (2 mm) blades at 2” (52 mm) spacing
- Tempered steel blades with 8 tungsten tips per blade
- Blades fitted in reverse rotation to slice cleanly through the turf
- Deep scalloped design to prevent blades from becoming clogged
Optional
- Blade widths 3/64” (1mm) and 1/8” (3mm)
- Variable blade spacing
| Brand | Graden |
|---|---|
| Product Alias | verti-cutter-scarifier-sw04 |
| Australian Made | No |
